10K 3977K Temperature Probe For Temperature Monitoring Of Human Body
Product Description:
10K 3977K Temperature Probe is a useful tool for monitoring body temperature accurately and consistently. This type of probe can be used in a variety of settings, such as hospitals, clinics, and even at home. It is designed to be durable and long-lasting, making it a cost-effective choice for those who need to monitor body temperature regularly. Additionally, the reusable feature makes it an environmentally friendly option, reducing waste compared to disposable probes. Overall, a 10k reusable human body temperature probe can be a reliable and practical tool for ensuring accurate temperature readings.
R25℃ = 10kΩ ± 0.1℃: This parameter indicates the resistance of the probe at 25 degrees Celsius. It's specified to be 10kΩ with a tolerance of ±0.1℃. This means that at 25℃, the resistance of the probe should ideally be 10kΩ, and its temperature tolerance is (25~45℃)±0.1℃.
B25/50 = 3977K ± 0.5%: This is the Beta (B) value of the thermistor used in the temperature probe. The Beta value describes the temperature-resistance characteristics of the thermistor. Specifically, it's the temperature at which the resistance of the thermistor is 25℃, divided by its temperature coefficient of resistance (in Kelvin). The B value provided is 3977K with a tolerance of ±0.5%. This means the characteristic curve of the thermistor might deviate by up to 0.5% from the standard 3977K value.
Specification:
R25℃=10KΩ±0.1
Beta Value: B25/50=3977K±0.5%
Probe size: Max φ1.7 black
Wire: CP/Sn φ0.35
Length: Min25mm
|
|

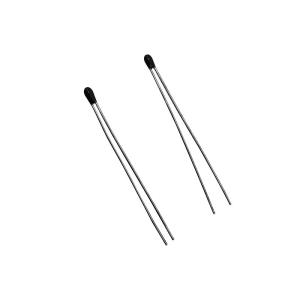

10K 3977K Temperature Probe For Temperature Monitoring Of Human Body Images
|
