Brand Name : Jingpu Brand
Model Number : JP402
Certification : CE,ROHS,ISO9001,ISO13485,UL
Place of Origin : Hefei, Anhui, China
MOQ : 1000
Price : USD 0.1-5 /PCS
Payment Terms : L/C, T/T, Western Union
Supply Ability : 200 Million per Year
Delivery Time : 2-7days
Packaging Details : Carton packing
Way to install : Inserting
Sensing way : Resistence
Output signal type : Analog Type
Material : Ceramics
Measuring the dielectric : Temperature
IP code : IP64
Transport package : Carton Packing
Appearance : Color can be customized
Warranty : 2 years
After-sale service : Quality Assurance
Chip : NTC Thermistor
Customization : Yes
Operating Temperature : Normal or low temperature
Resistence Value : Custom
B Value : Custom
Shipping : Shipping, Air, or Express
Wire : PVC, Teflon, Enamel Insulation
Free Sample : Yes
Micro Plug Body Surface NTC Temperature Sensor For Medical Monitoring Equipment
Brief Instruction:
Skin temperature probe medical temperature sensor is widely used for human body surface temperature measurement. The sensor probe is epoxy and metal disk, micro plug or custom connector according to the customer’s requirement. The rated resistance value 2.252KΩ or 10KΩ.
Features:
Human body surface temperature measurement
Reusable
(25~45)℃±0.1℃
Operating temperature range: 0℃~50℃
It has certain waterproof and dustproof ability
Resistance value is different, the corresponding temperature is different, the display temperature can be adjusted
Measuring the air temperature of the normal environment, sensitive response, waterproof, widely used in medical equipment, medical monitor
Can measure the body surface temperature
Application:
Suitable for medical monitoring equipment

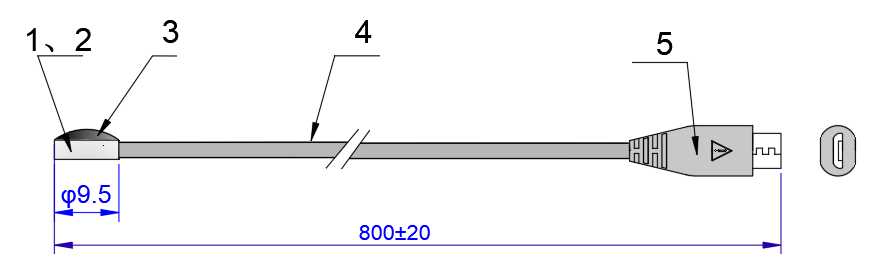

Structure and Dimensions:(Unit:mm)
NO. | Name | Material Specification | QTY. | Remarks |
1 | Chip | NTC Thermistor | 1 | |
2 | Probe | SUSφ2*9.5 | 1 | / |
3 | Encapsulation | Epoxy | / | gray |
4 | Cable | PVC 28AWG OD2.0 Shielded round sheath wire | 1 | gray |
5 | Plug | MICRO | 1 | gray |

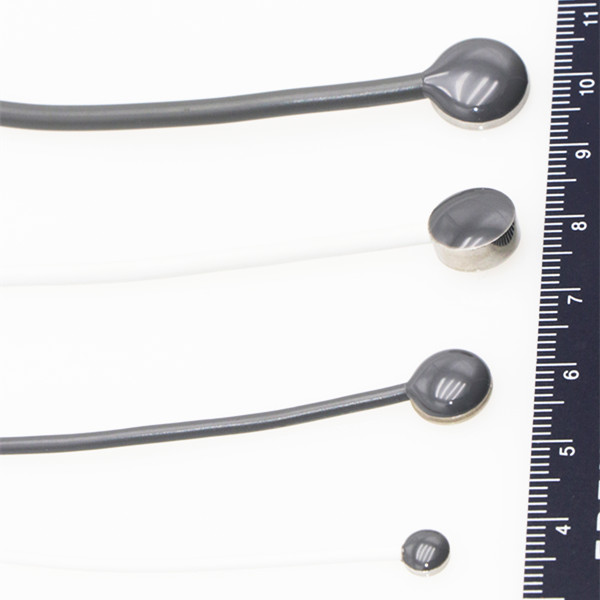

product picture/images:
Standard packing (inner packing): 1 pcs/polybag
![]() |
