2.252k Skin Temperature Probe For Medical Monitoring Equipment 5.6mm Diameter

Name: 2252k Skin Temperature Probe For Medical Monitoring Equipment 56mm Diameter
Brand: Jingpu Brand
Price: 0.1 USD

Quality 2.252k Skin Temperature Probe For Medical Monitoring Equipment 5.6mm Diameter wholesale

Brand Name : Jingpu Brand

Model Number : JP402

Certification : CE,ROHS,ISO

Place of Origin : Hefei, Anhui, China

MOQ : 500

Price : USD 0.1-5 /PCS

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2-7days

Packaging Details : Carton packing

Way to install : Inserting

Sensing way : Resistence

Output signal type : Analog Type

Material : Epoxy and Metal

Measuring the dielectric : Temperature

IP code : IP64

Transport package : Carton Packing

Appearance : Gray

Warranty : 2 years

After-sale service : Quality Assurance

Customization : Yes

Operating Temperature : /

Resistence Value : Custom

B Value : Custom

Shipping : Shipping, Air, or Express

Wire : PVC/XPLE/FEP/PTFE

Contact Now

2.252k Skin Temperature Probe For Medical Monitoring Equipment 5.6mm Diameter

Brief Instruction:

Skin temperature probe medical temperature sensor is widely used for human body surface temperature measurement. The sensor probe is epoxy and metal disk, 2 pin aviation plug or custom connector according to the customer’s requirement. The rated resistance value 2.252KΩ or 10KΩ. Total length is 1.5Meters, and the sensor measuring tolerance within ±0.1℃(25℃~45℃).

Features:

Human body surface temperature measurement

Reusable

(25~45)℃±0.1℃

Operating temperature range: 0℃~50℃

Application:

Suitable for medical monitoring equipment

This is for neonatal ICU babies.

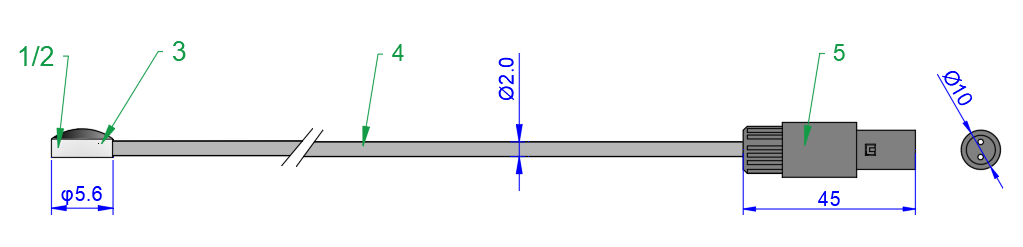

Structure and Dimensions:(Unit:mm)

2.252k Skin Temperature Probe For Medical Monitoring Equipment 5.6mm Diameter

NO.	Name	Material Specification	QTY.	Remarks
1	Chip	NTC Thermistor	1	R25=2.252KΩ
2	Probe	SUSφ5.6	1	/
3	Encapsulation	Epoxy	/	Black
4	Cable	28AWG OD2.0 Round sheathed wire	1	Gray
5	Plug	2 pin aviation plug	1	Gray

Standard packing (inner packing): 1 pcs/polybag

Operation Notice

1. Application:Temperature measure ；　

2. The current flowing through the NTC is controlled within the Pmax range to avoid the measurement error caused by the self-heating of the component.

3. Storage Temperature 0℃～50℃,30%~80%RH；Avoid in a corrosive gas and sunlit environment; After opening the package, it needs to be sealed again.
