14.054Kohm B0 50 Medical Temperature Sensor 3435 PI Max 0.5mm Micro NTC Thermistor

  • 1
  • 2
  • 3

Brand Name : JP SENSOR

Model Number : JP404

Certification : CE, ISO13485, ISO9001, RoHS

Place of Origin : Anhui, China

MOQ : 1000 Pieces

Price : To be negotiated

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2 Weeks

Packaging Details : Carton Packaging

Resistance : R37℃=14.054KΩ±0.5%

B Value : B0/50=3435±1%

Operating Temperature Range : 0℃~60℃

Application : Cardiothoracic surgery, laboratory animal researchurinary catheterS, etc

Component : Epoxy resin, PI φ0.5， NTC Chip, Enamelled wire OD 0.12*2

Contact Now

14.054Kohm B0 50 Medical Temperature Sensor 3435 PI Max 0.5mm Micro NTC Thermistor

Product Description:

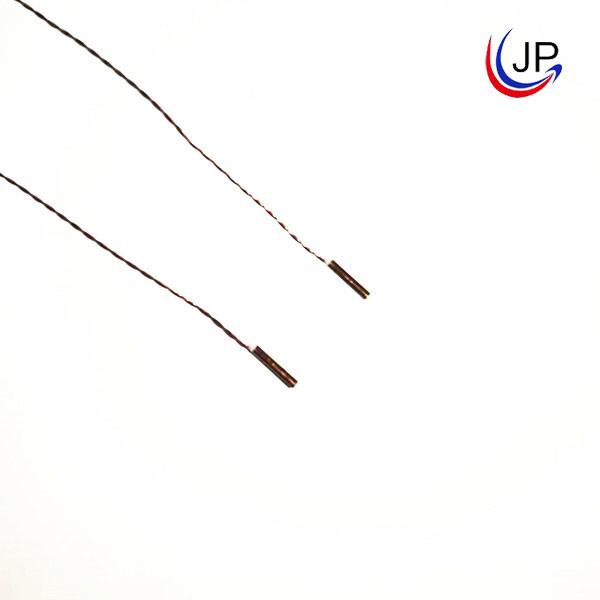

This product is a miniature medical temperature sensor NTC thermistor. Once the miniature chip is soldered, it is encapsulated with a polyimide tube with an outer diameter of Maxφ0.5. The inside of the sleeve is filled with epoxy resin, and the outer diameter of the lead is OD0.12*2. enamelled wire.

Features:

Comply with RoHS

Operating Temperature Range: 0℃~60℃

Measurement Tolerance: 25℃~45℃ ±0.1℃

R37℃=14.054KΩ±0.5%

B25/85=3435±1%

Miniature

Fast Response

Application:

Applied for urinary catheters, laboratory animal research, cardiothoracic surgery, etc.

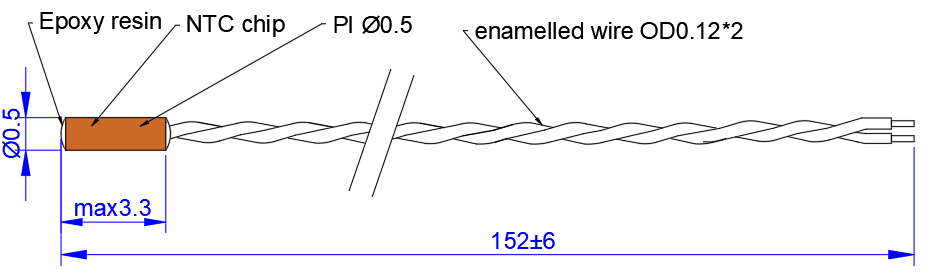

Structure and Dimensions:(Unit: mm)

14.054Kohm B0 50 Medical Temperature Sensor 3435 PI Max 0.5mm Micro NTC Thermistor

Electrical Specification:

Item Code Test condition Performance requirements Unit
(Rated resistance) R25℃ +25℃±0.02℃ 14.054 kΩ
(B value) B25/85 +25℃±0.02℃, +85℃±0.02℃ 3435 K
(Response time) τ 23℃(air)→44℃(water),≤±0.1℃ ≤5 S
(Max.Energy Dissipation) Pmax In water(≤1.2mA),≤0.02℃ Approx 50 μW
(Withstand voltage) Hi-pot AC300V 1mA 1s In still air No break down V
(Operating Temp. Range) OTR In still air 0～50 ℃
